How to Wire a Doorbell Transformer: A DIY Beginner’s Guide
Are you looking to add a friendly chime to your home that welcomes you and your guests? Installing a doorbell is a simple yet rewarding project that can enhance the functionality and charm of your entryway. While the process may seem daunting at first, especially when it comes to wiring the doorbell transformer, fear not!
This beginner’s guide will walk you through each step, making the entire experience both straightforward and enjoyable. Whether you’re a seasoned DIY enthusiast or just starting, you’ll gain the knowledge and confidence to tackle this project with ease. So, roll up your sleeves, grab your tools, and let’s dive into the world of doorbell transformers!
Table of Contents
- Understanding Doorbell Transformers and Their Purpose
- Essential Tools and Materials You’ll Need for the Job
- Step-by-Step Instructions for Wiring Your Doorbell Transformer
- Safety Tips and Common Mistakes to Avoid During Installation
- Q&A
- To Wrap It Up
Understanding Doorbell Transformers and Their Purpose
When it comes to the functionality of a doorbell system, a transformer plays an essential role by converting the standard household voltage into a lower voltage suitable for the doorbell unit. Typically, residential electrical systems operate at 120 volts, while most doorbells require only 8 to 24 volts. This reduction is crucial for safety and efficiency, ensuring that the doorbell components operate correctly without risk of electrical shock or damage. A doorbell transformer is often mounted in a location such as the basement or behind an outlet, making it less visible yet vital for a seamless home entry experience.
Understanding the nuances of doorbell transformers can empower DIY enthusiasts to address issues proactively. Here are some important points to keep in mind:
Power Rating: Ensure you select a transformer with an appropriate power rating for your specific doorbell model.
Wiring Compatibility: Familiarize yourself with the wiring layout of both your transformer and doorbell to avoid any mishaps during installation.
Size Matters: Consider the physical dimensions and mounting options of the transformer to ensure it fits your installation area.
| Transformer Voltage | Ideal Doorbell Type |
|---|---|
| 8-10 volts | Standard wired doorbells |
| 16-20 volts | Wireless doorbells |
| 24 volts | Smart doorbell cameras |
Essential Tools and Materials You’ll Need for the Job
Before diving into the task of wiring a doorbell transformer, it’s essential to gather the right tools and materials. Having these on hand will ensure a smoother and more efficient installation process. Here are some must-have tools:
Screwdriver Set: A reliable set of both flat-head and Phillips screwdrivers.
Pliers: Needle-nose pliers will be particularly helpful for bending wires.
Wire Cutters: Essential for trimming excess wire to the desired length.
Voltage Tester: To check the electrical current and ensure safety.
Drill: Useful if you need to make new holes for mounting the transformer.
In addition to tools, you will also need several key materials to complete the wiring process effectively. Make sure you have these items ready:
Doorbell Transformer: Choose one that matches your doorbell’s voltage requirements.
Electrical Wire: Use low-voltage wire appropriate for doorbell applications.
Wire Nuts: Perfect for securely connecting wires together.
Electrical Tape: For added insulation and safety on connections.
Mounting Hardware: Depending on your installation, this can include screws or anchors.
Step-by-Step Instructions for Wiring Your Doorbell Transformer

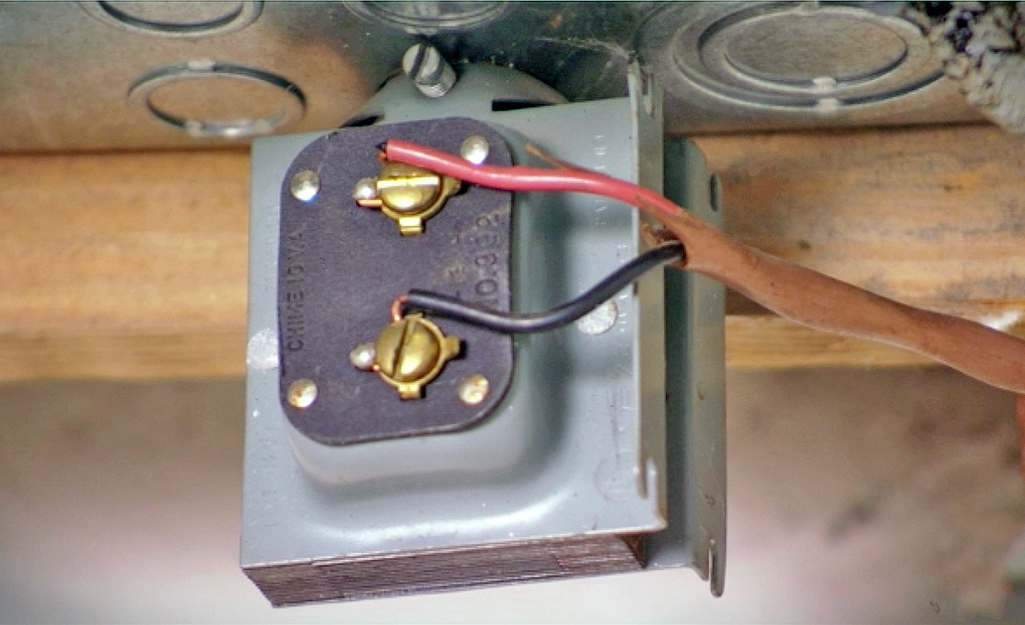

Next, carefully connect the wires to the transformer. Strip about half an inch of insulation off the ends of each wire using the wire strippers. Typically, the transformer will have two sets of terminals: one for the low-voltage output and one for the high-voltage input. Connect the high-voltage input wires to the transformer’s terminals, ensuring proper alignment as indicated on the device. Afterward, attach the low-voltage wires to the corresponding terminals and secure them tightly. Always double-check your connections before turning the power back on. Once everything is securely in place, you can restore the power and test your doorbell! Here’s a simple table summarizing the steps:
| Step | Description |
|---|---|
| 1 | Turn off the power supply. |
| 2 | Gather tools and materials. |
| 3 | Strip ends of the wires. |
| 4 | Connect wires to the transformer. |
| 5 | Restore power and test. |
Safety Tips and Common Mistakes to Avoid During Installation
When installing a doorbell transformer, safety should be your top priority. Before you begin, always turn off the power to the circuit at your home’s breaker box. This will help you avoid any unwelcome surprises, such as electric shock. Additionally, make sure to use insulated tools whenever you’re working with electrical components. It’s also advisable to check for exposed wires and ensure that your workspace is dry and free of any clutter to prevent accidents.
Common mistakes can derail your installation process and compromise safety. One frequent error is overlooking the transformer’s location—it should be installed in a well-ventilated area to prevent overheating. Another mistake is using the wrong wire gauge; always consult your transformer’s manual for the appropriate specifications. Lastly, failing to securely fasten connections can lead to intermittent power supply or short circuits. Keep these tips in mind to ensure a smooth and safe installation:
- Always wear safety gear.
- Double-check your voltage requirements.
- Label wires before disconnecting them for easier reassembly.
Q&A
Q: What is a doorbell transformer, and why do I need one?
A: A doorbell transformer is a device that converts high voltage electricity from your home’s power supply into a lower voltage suitable for doorbells. Most doorbells operate on 8 to 24 volts, making the transformer essential for safe operation. Without it, your doorbell would receive too much voltage and could get damaged or pose a safety hazard.
Q: Where is the best place to install a doorbell transformer?
A: Doorbell transformers are typically installed near your main electrical panel or in a garage, basement, or attic. You’ll want to choose a location that is easily accessible for wiring but also out of the way of daily activities to prevent any accidental damage.
Q: Do I need any special tools to wire a doorbell transformer?
A: Yes, you’ll need a few basic tools: a screwdriver (flat-head or Phillips, depending on your screws), wire strippers, pliers, and possibly a voltage tester to ensure safety. Additionally, you may want a drill if you need to secure the transformer to a wall.
Q: What safety precautions should I take before starting the installation?
A: Always turn off the power at the circuit breaker to the area where you’ll be working. It’s a good idea to use a voltage tester to confirm that the power is off before you begin. Additionally, wearing protective gear such as gloves and safety glasses can help you stay safe during the installation process.
Q: Can I install a doorbell transformer myself, or should I hire a professional?
A: Installing a doorbell transformer is a great DIY project for beginners! With some basic electrical knowledge and careful attention to safety, you can successfully complete the installation. However, if you feel uncomfortable working with electrical components, it’s always best to hire a licensed electrician.
Q: How do I connect the transformer to the doorbell?
A: First, make sure the power is off. Connect the transformer’s low-voltage wires to the doorbell push button (usually marked as “R” for transformer and “B” for bell). The transformer also has two high-voltage connections that connect to your home’s electrical supply. Follow the instructions that come with your transformer, as the colors and configurations may vary.
Q: What if my doorbell doesn’t ring after I’ve installed the transformer?
A: If your doorbell isn’t working, check the following: ensure the transformer is correctly wired and securely connected, confirm that the power is on, and test for voltage at the transformer with a voltage tester. If everything seems right but the doorbell still doesn’t work, there may be an issue with the button or the doorbell chime itself.
Q: Are there any common mistakes I should watch out for?
A: Yes! One common mistake is connecting the wires backwards. Double-check your connections and ensure that the low voltage side of the transformer is wired correctly to the doorbell. Another mistake is neglecting to secure all your connections well, which can lead to intermittent issues.
Q: How often should I check or replace my doorbell transformer?
A: Generally, doorbell transformers are quite durable and can last many years. However, it’s good practice to check them periodically, especially if you notice issues with your doorbell. Look for any signs of wear, corrosion, or unusual sounds. If you suspect it’s malfunctioning, it’s best to replace it.
Q: Can I upgrade my doorbell system after installing a transformer?
A: Absolutely! Many modern doorbells, especially smart doorbells, can be integrated with existing transformer setups. Just ensure that the new doorbell is compatible with the voltage your transformer provides, and follow the manufacturer’s instructions for installation.
By following this beginner’s guide and having the necessary knowledge, you’ll be on your way to successfully wiring your doorbell transformer and enjoying the convenience of your doorbell system in no time! Happy DIYing!
To Wrap It Up
wiring a doorbell transformer might seem daunting at first, but with a little patience and the right guidance, it’s an entirely achievable DIY project! By following the steps outlined in this guide, you can enhance your home’s functionality and ensure that your doorbell works reliably for years to come. Remember to always prioritize safety by turning off the power before starting any electrical work and verifying your connections with a multimeter.
As you embark on this project, don’t hesitate to reach out for help if you’re unsure about any steps; it’s always better to ask. Once your doorbell is up and running, you’ll not only enjoy the convenience of notifying guests, but you’ll also gain a sense of accomplishment from tackling a home improvement task on your own. Happy wiring!
